SINGLE MONITOR HEAVY DUTY SPRING MONITOR ARM | MOUNT

LDT23-C012

8,250.00

Share with others

DESCRIPTION

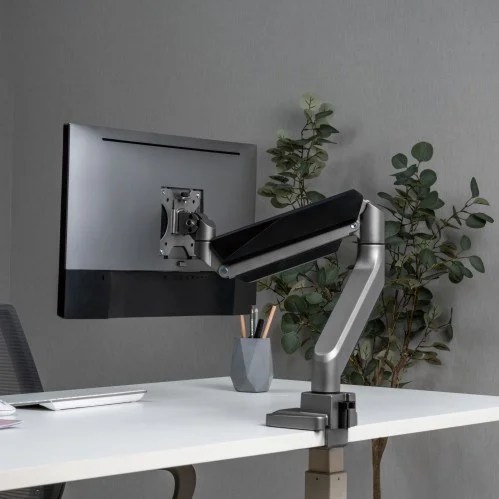

This Aluminum Heavy-Duty Single monitor desk mount fits monitors from 17″~35″ and holds up to 15kg/33lbs.  due to a great weight capacity this monitor desk mount supports even the largest monitors. Bigger monitors can be moved easily in all directions as the user wishes. This monitor stand has a unique gas spring mechanism as a result of which the monitor desk mount can be moved up, down, left as well as right
Bigger screen means that there is a greater risk. Hence, there is  an additional screw behind the arm to provide extra support and strength to the desk mount. It also broadens the arm past the back edge of work area.
The monitor size is constantly on the rise and there is a need for good quality monitor stand with a heavier weight capacity. This monitor desk mount supports one monitor upto 35 inches. This is an industry leading weight capacity. Monitor stand can be either drilled onto the desk or can be clamped at the edge of the desk also.

FEATURES

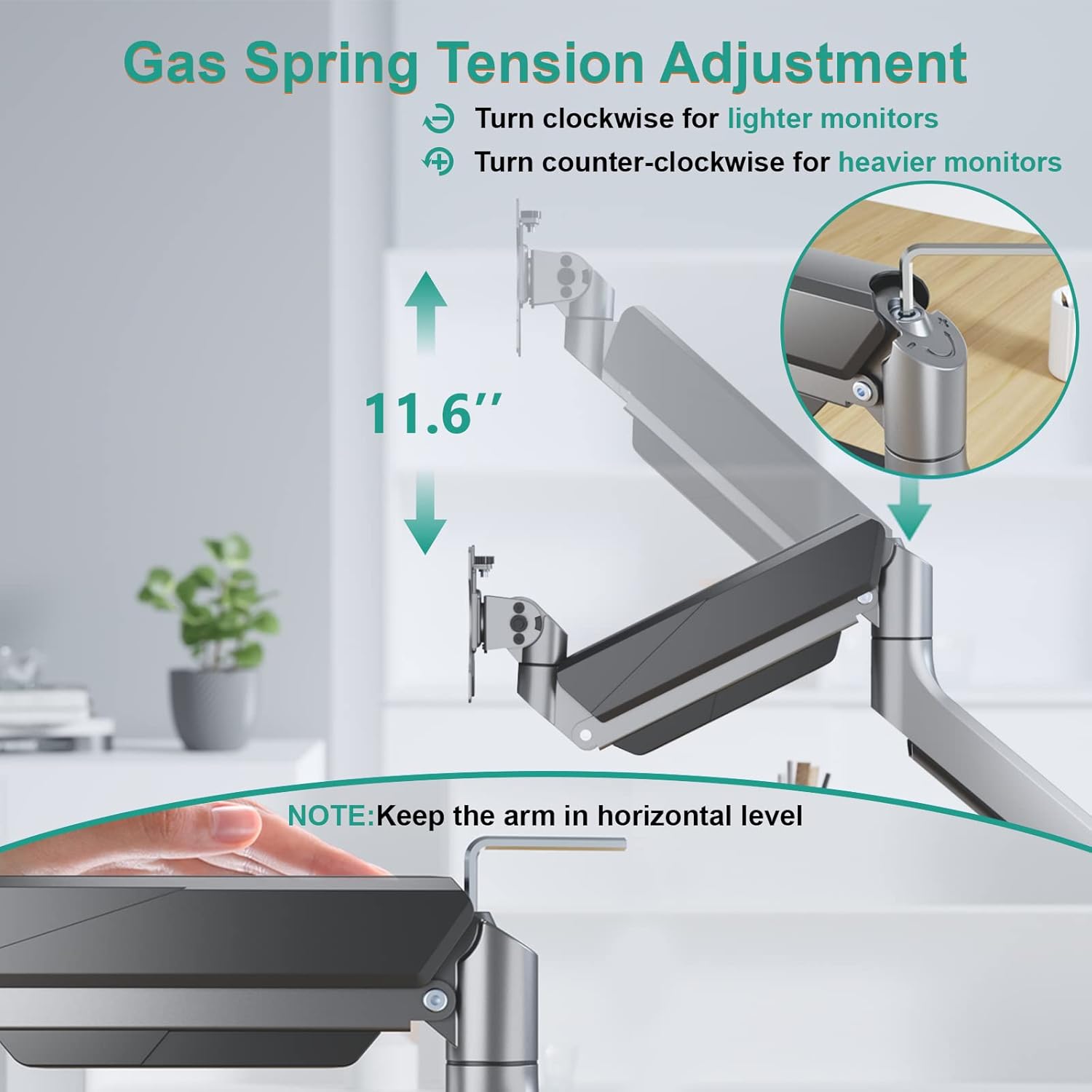

  • Gas Spring: splendidly offsets weight of your screen

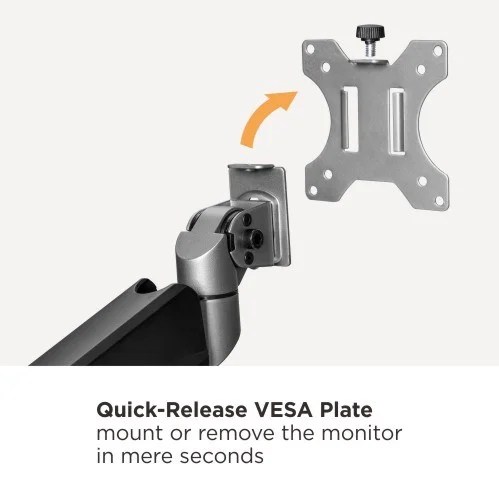

  • Slide-in VESA Plate: for fast connection and separation

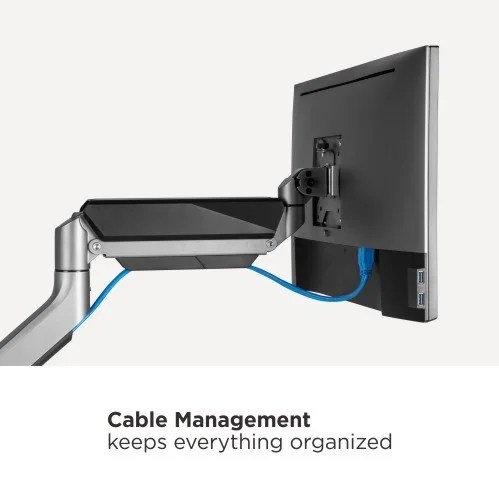

  • Cable Management: richly conceals any links that are connected to shows

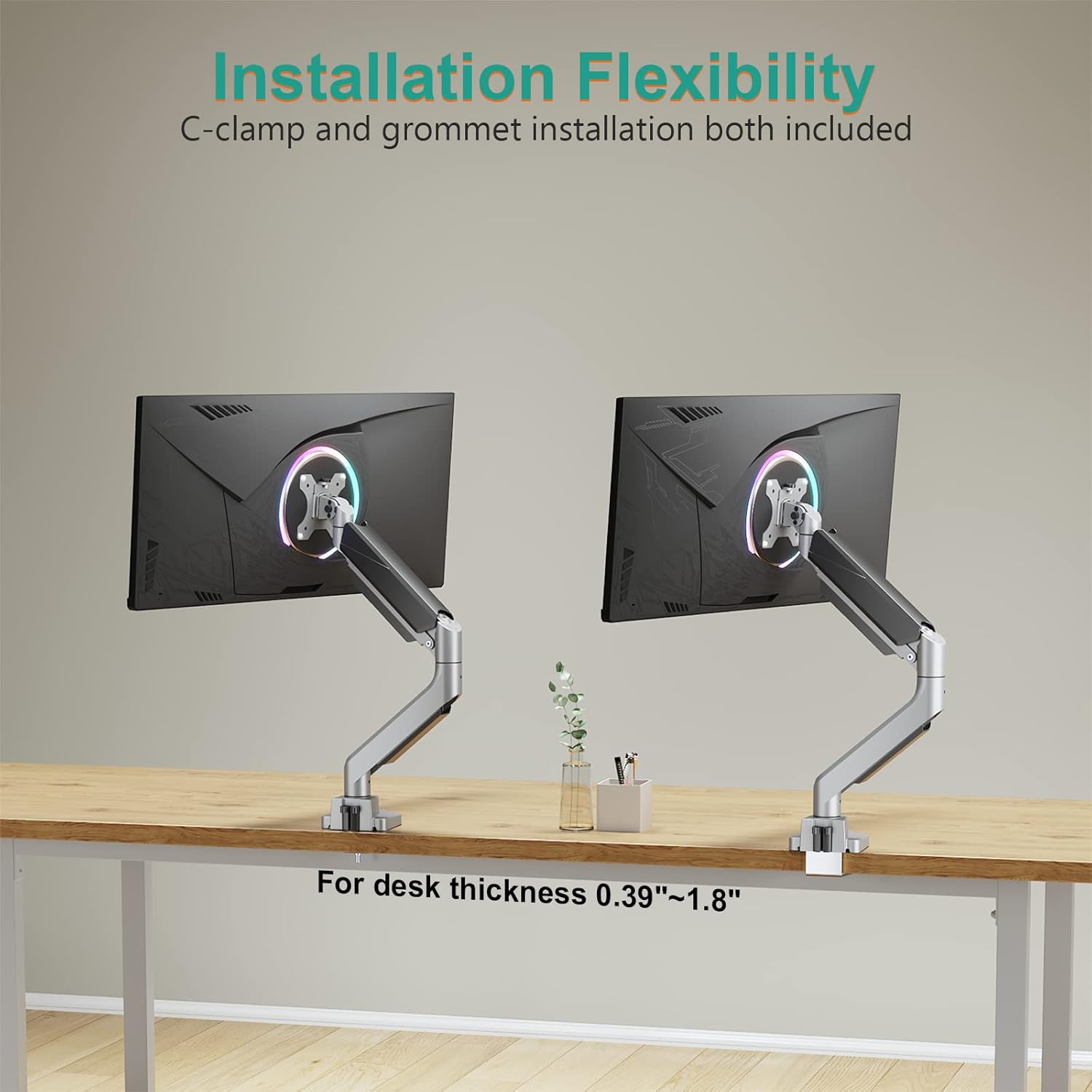

  • Two Mounting Options: both work area clasp and grommet are incorporated

TECHNICAL SPECS

Product Category Gas Spring Monitor Arm
Rank Premium
Material Aluminum,Plastic,Steel
Surface Finish Powder Coating
Color Matte Black
Dimensions 120x575x750mm (4.7″x22.6″x29.5″)
Fit Screen Size 17″-35″
Fit Curved Monitor Yes
Screen Quantity 1
Weight Capacity (per screen) 1~15kg (2.2lbs~33lbs)
VESA Compatible 75×75,100×100

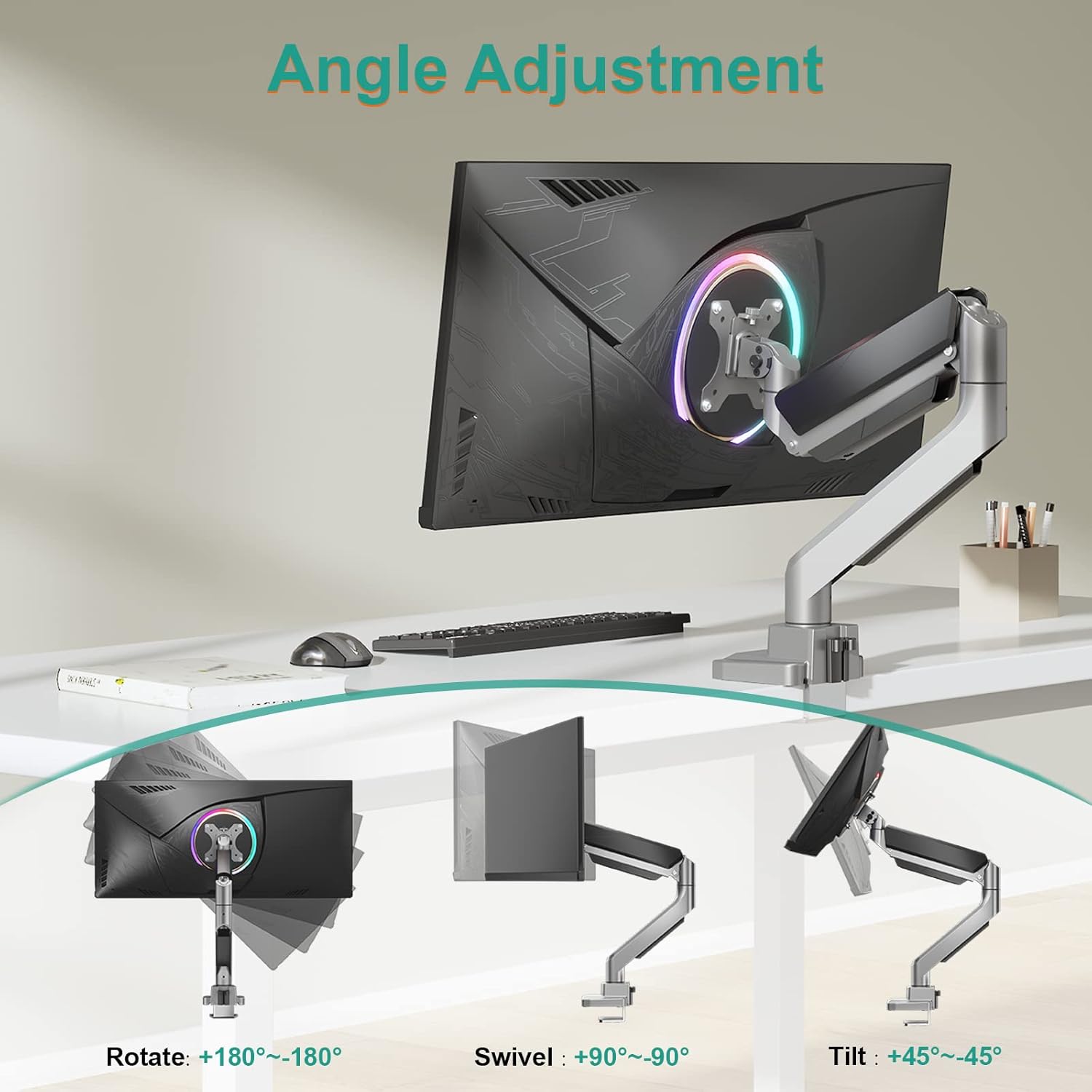

Tilt Range +45°~-45°

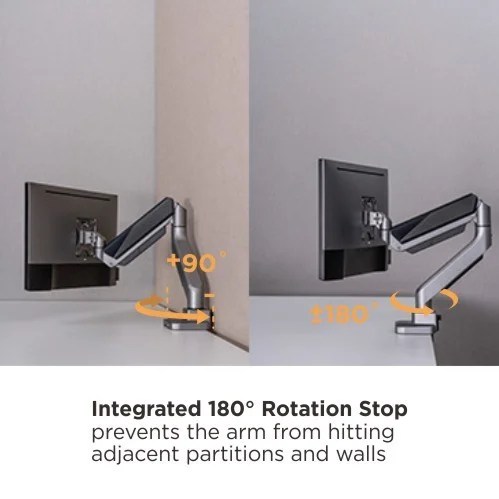

Swivel Range +90°~-90°
Screen Rotation +90°~-90°
Arm Full Extension 526mm (20.7″)
Installation Grommet,Clamp
Suggested Desktop Thickness Clamp:10~85mm Grommet:10~48mm (Clamp:0.39″~3.3″ Grommet:0.39″~1.9″)
Quick Release VESA Plate Yes
Cable Management Yes
Patent 2017209107978
Accessory Kit Package Normal/Ziplock Polybag, Compartment Polybag
